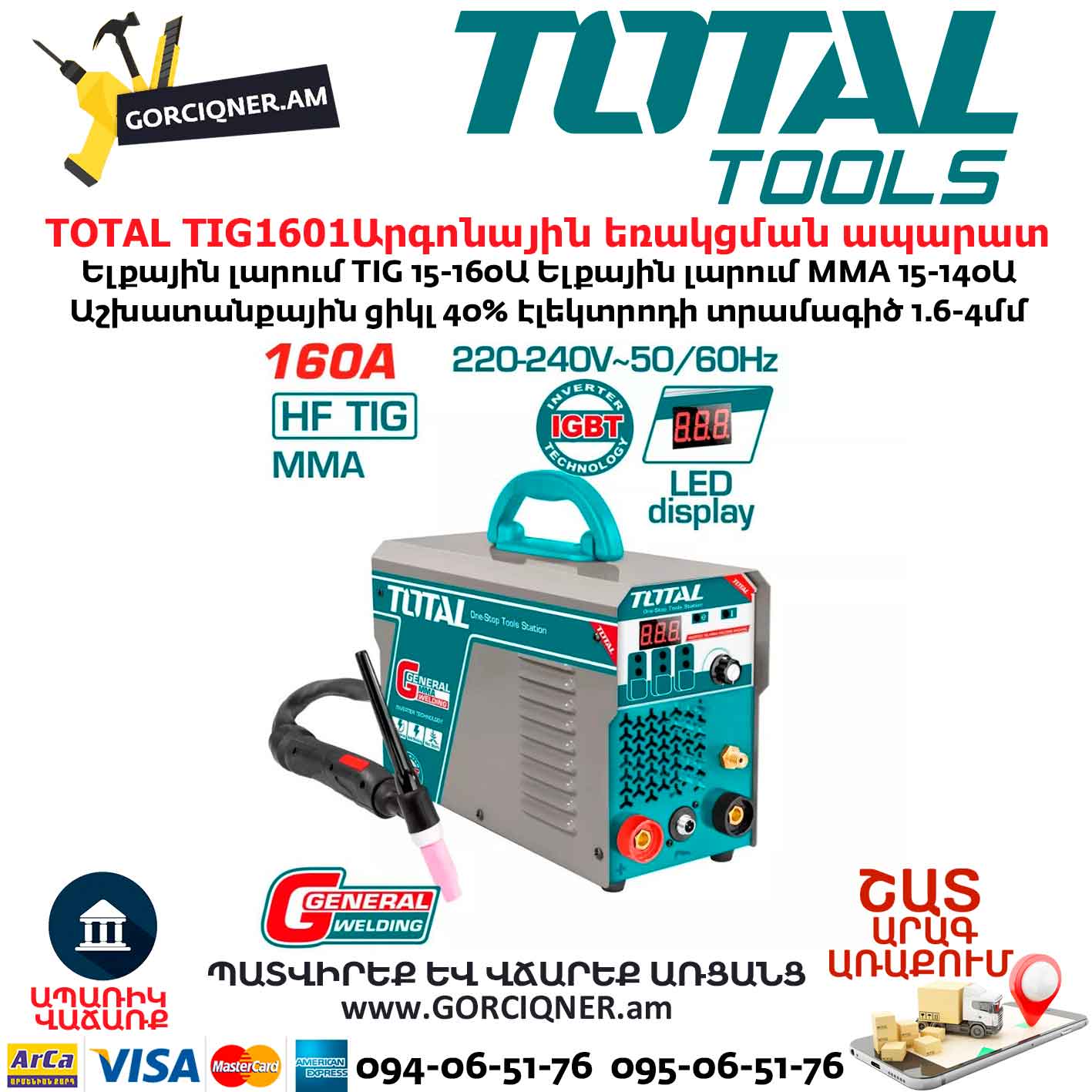

TOTAL TIG1601 Inverter TIG/MMA Welding Machine 160A

Depending on the material or the specifics of the products, the craftsmen choose different welding methods, for example,

MMA(Manual Metal Arc) – manual arc welding with coated stick electrodes.

TIG(Tungsten Inert Gas) – argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon). However, MIG-MAG welding is the most widely used:

The Total TIG1601 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.

Inverter welding with control technology. Has automatic protection against electrical vibrations. Portable, fan cooled.

Temperature control to protect equipment.

ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.

Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.

Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.

Included:

With electrode tweezers 1 pc. With cable.

With 1 earthing clamp with cable.

With 1 wire brush and 1 mask.

With wire tweezers 1 pc.

MMA – Manual electric arc welding.

TIG – Argon arc welding. exceptional quality of the weld.

Power: 5.72 kVA = 4.58 kW.

Voltage: 220-240 V ~ 50/60 Hz.

Output voltage (MMA): 15 – 160 A.

Output voltage increase (TIG): 15 – 160 A.

No-load voltage: 85 V.

Maximum output voltage: 160 A.

Rated duty cycle: 40% @ 160A, 40 ℃.

Welding wire diameter(MMA): 1.6 – 3.2 mm.

Welding wire size(TIG): 1.6, 2.4, 3.2 mm.

Powered by a 5 kg wire spool.

Wire feed speed: 2-11 (m / min).

Built-in cable feeder.

IGBT technology.

IP21 protection rating.

Insulation class: H.

LCD display.

Weight: 10 kg.

Warranty: 1 year
