Weight | 230 kg |
---|

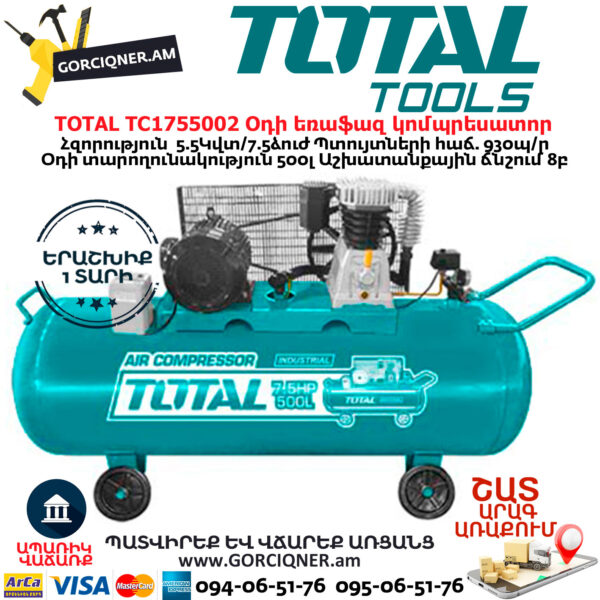

TOTAL TC1755002 Air Oil Belt Compressor 500L/5.5KW
1,012,000AMD
- Air oil coaxial compressor TOTAL TC1755002 has high performance due to direct drive. The oil bath provides better performance with less energy consumption. The robust case is suitable for any conditions of use. The presence of wheels and a transport handle provides mobility suitable for large construction sites or industrial enclosures. The built-in pressure gauge makes it easy to control the air compression ratio and reduces the chance of breakage of the connected tool.
Type – air compressor.
Compressor type – piston belt.
Voltage – 380 V. Frequency – 50Hz.
Input power – 5.5 kW.
Rotation speed – 930 rpm.
Number of compressor cylinders – 2.
Number of compression stages – 1.
Tank volume – 500 L (132 Gal).
Work pressure – max 10 bar (145psi).
Input performance – 810 L/min.
Noise – 83db. With a receiver.
Easy to move.
Convenient drainage of condensate. Long service life.
Transport wheels – 4 pieces.
Manometer: yes.
Pump lubricated – with oil.
Copper wire motor and Low noise motor.
Packed in wooden crate.
