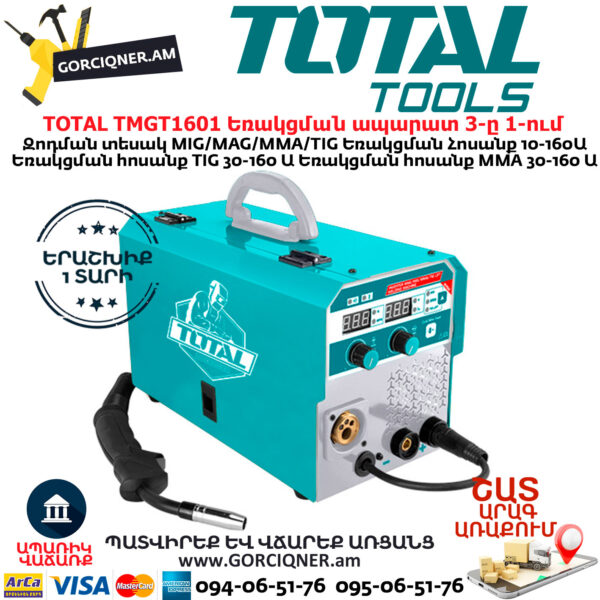

TOTAL TMGT1601 Welding Machine 160 A Inverter/MAG/MIG/MMA/TIG
245,700AMD
- Depending on the material or the specifics of the products, the craftsmen choose different welding methods, for example,
- MMA(Manual Metal Arc) – manual arc welding with coated stick electrodes.
- TIG(Tungsten Inert Gas) – argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon). However, MIG-MAG welding is the most widely used:
- MIG(Metal Inert Gas) – is welding in which an inert gas such as helium or argon acts as an insulating medium.
- MAG(Metal Active Gas) – is a type of welding using an active gas, such as nitrogen, carbon dioxide, etc.
- The Total TMGT1601 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.
- Inverter welding with control technology. Has automatic protection against electrical vibrations. Portable, fan cooled.
- Temperature control to protect equipment.
- ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
- Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
- Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
- Included:
With electrode tweezers 1 pc. With cable.
With 1 earthing clamp with cable.
With 1 wire brush and 1 mask.
With wire tweezers 1 pc
MMA – Manual electric arc welding.
MIG (Metal Inert Gas) – using inert gas. MIG machines are perfect for welding aluminum, copper, titanium products, nickel and various alloys.
MAG (Metal Active Gas) – using nitrogen, carbon dioxide and other gases that bind oxygen. The type of welding is used for workpieces made of low-alloy, unalloyed and corrosion-resistant steels.
TIG – Argon arc welding. exceptional quality of the weld.
Power: 5.72 kVA = 4.58 kW.
Voltage: 220-240 V ~ 50/60 Hz.
Output voltage (MMA): 10 – 160 A.
Output voltage (MIG): 30 – 160 A.
Output voltage (MAG): 30 – 160 A.
Output voltage increase (TIG): 30 – 160 A.
No-load voltage: 80 V.
Maximum output voltage: 160 A.
Rated duty cycle: 30% @ 160A, 40 ℃.
Welding wire diameter(MMA): 1.6 – 4 mm.
Welding wire size(MAG/MIG/TIG): 0.6, 0.8, 1.0 mm.
Welding wire – TEWSFC081001 .
Powered by a 5 kg wire spool.
Wire feed speed: 2-11 (m / min).
Built-in cable feeder.
IGBT technology.
IP21 protection rating.
Insulation class: H.
LCD display.
Weight: 10 kg.
Warranty: 2 year.
