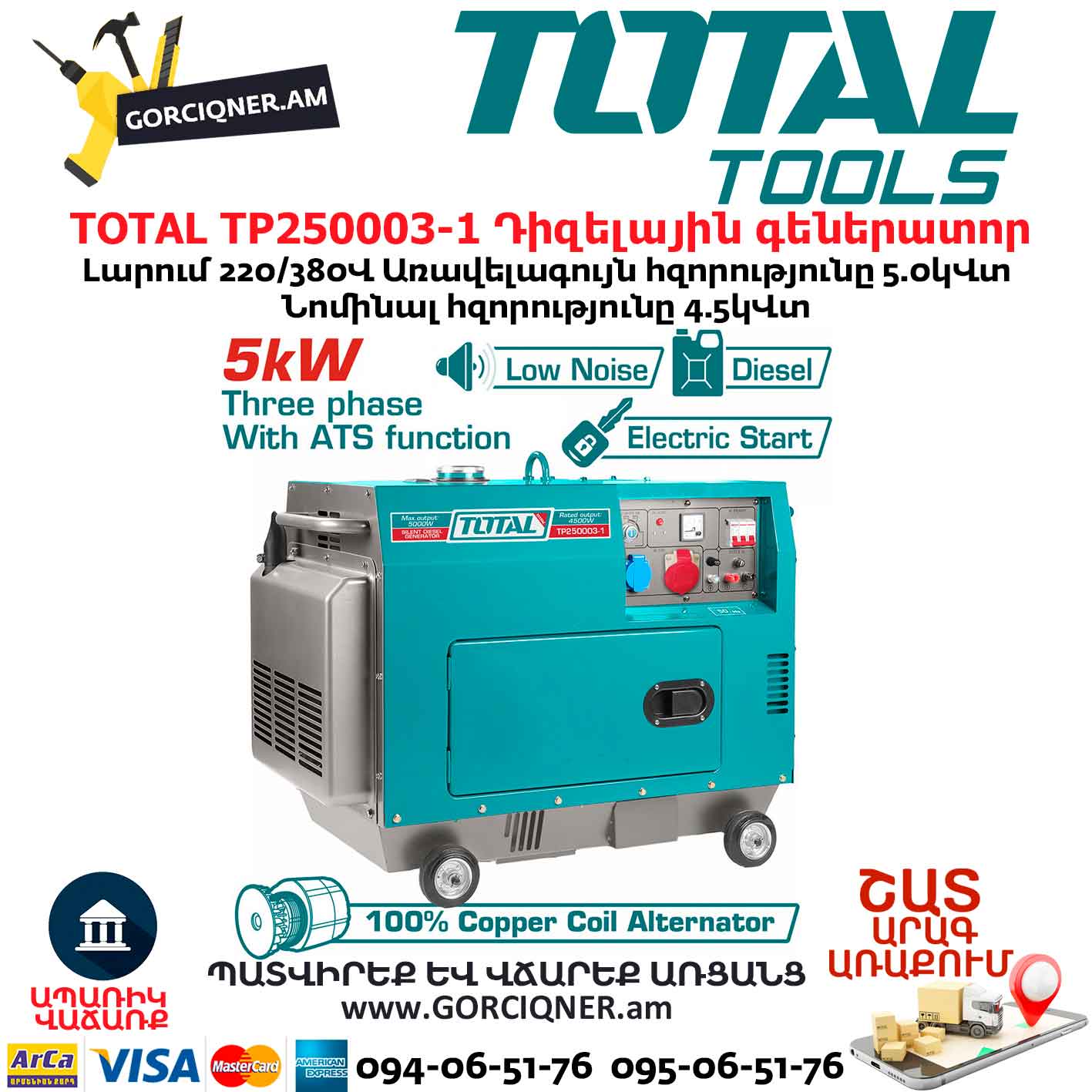

TOTAL TP250003-1 Diesel Generator Noiseless Three-Phase 5000W
900,800AMD
Total TP250003-1 diesel generators, the design of the device is elegance, easy operation and high durability with a weight of 172 kg, including wheels and manual pulling force, help to move easily and conveniently in the family, in the factory.
Is designed for the operational supply of electricity.
User friendly complete control panel. AC circuit breaker.
The AVR system provides precise voltage control. Maintenance-free battery.
In the event of power failures, it provides lighting for the house, as well as the operation of basic household devices (electric kettle, refrigerator, heater, etc.).
The machine has a compact structure, simple, easy to move and use.
The machine runs smoothly, quietly.
The engine is easy to start, sensitive and economical.
Power: 5000 W.
Constant power: 4500 W.
Phase: Three.
Max Output : 5.0 KW @ 380-415 V .
Rated Output : 4.5 KW @ 380-415 V .
Max Output : 1.6 KW @ 220-240 V .
Rated Output : 1.5 KW @ 220-240 V .
Voltage regulator: AVR.
AC 1 x 220/240 V ~ 50 Hz / 20 A.
AC 1 x 380/415 V ~ 50 Hz / 20 A.
Constant current 1 x 12 volts (8.3 a).
Rated speed: 3000 rpm․
Engine: 4-stroke, Diesel.
Cylinder working volume: 418 ml.
Piston diameter X: 86 x 72 mm.
Engine power: 9 HP․
Starting system: Mechanical + electrical.
Starting system: Automatic blocking.
Ignition system: TCI.
Fuel tank capacity: 17 L.
Large metal fuel tank with mesh filter.
Fuel consumption: ≤ 330 g / kWh.
Oil capacity: 1.65 l.
Oil level indicator.
Equipped with an analog voltmeter.
Oil: SAE 15W30, 15W40.
Continuous working time: 9 hours.
Cooling system: fan.
Noise level: 75 dB.
Weight: 172 kg.
Equipped with wheels and handles for easy movement of the generator.
Warranty. 1 year
