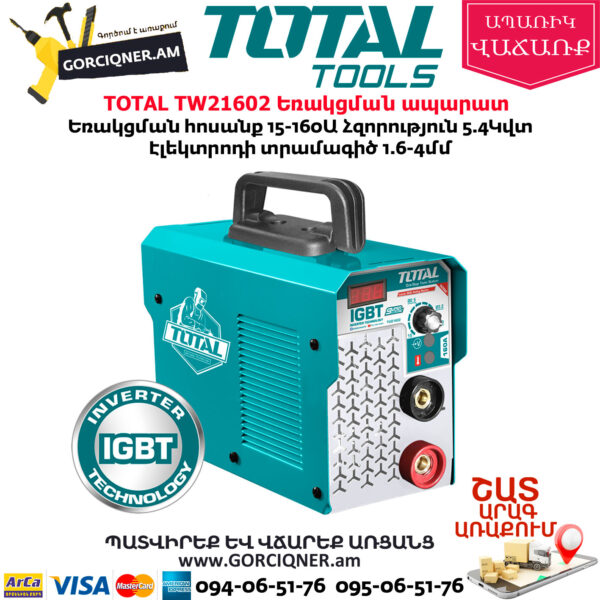

TOTAL TW21602 Welding Machine 160 A Inverter
66,150AMD
- The Total TW21602 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.
- The TW21602 electronic welding machine works with rods ranging from 1.6mm to 4 mm. Stable arc, high sticking resistance, difficult-to-weld rods can be welded.
- Temperature control to protect equipment.
- ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
- Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
- Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
Power: 5.72 kVA = 4.58 kW.
Voltage: 220-240 V ~ 50/60 Hz.
Voltage Output: 15 – 160 A.
No load voltage: 75 V.
Maximum output voltage: 160 A.
Rated duty cycle: 30% @ 160A.
Welding wire diameter: 1.6 – 4 mm.
IGBT technology.
IP21S protection rating.
Insulation class: H.
LCD display.
Weight: 4.2 kg.
Warranty: 1 Years
Included in the set:
- Electrode holder 1 pc.
- Cable with grounding clamp 1 pc.
- Wire brush cable 1 pc.
- Helmet 1 pc.
